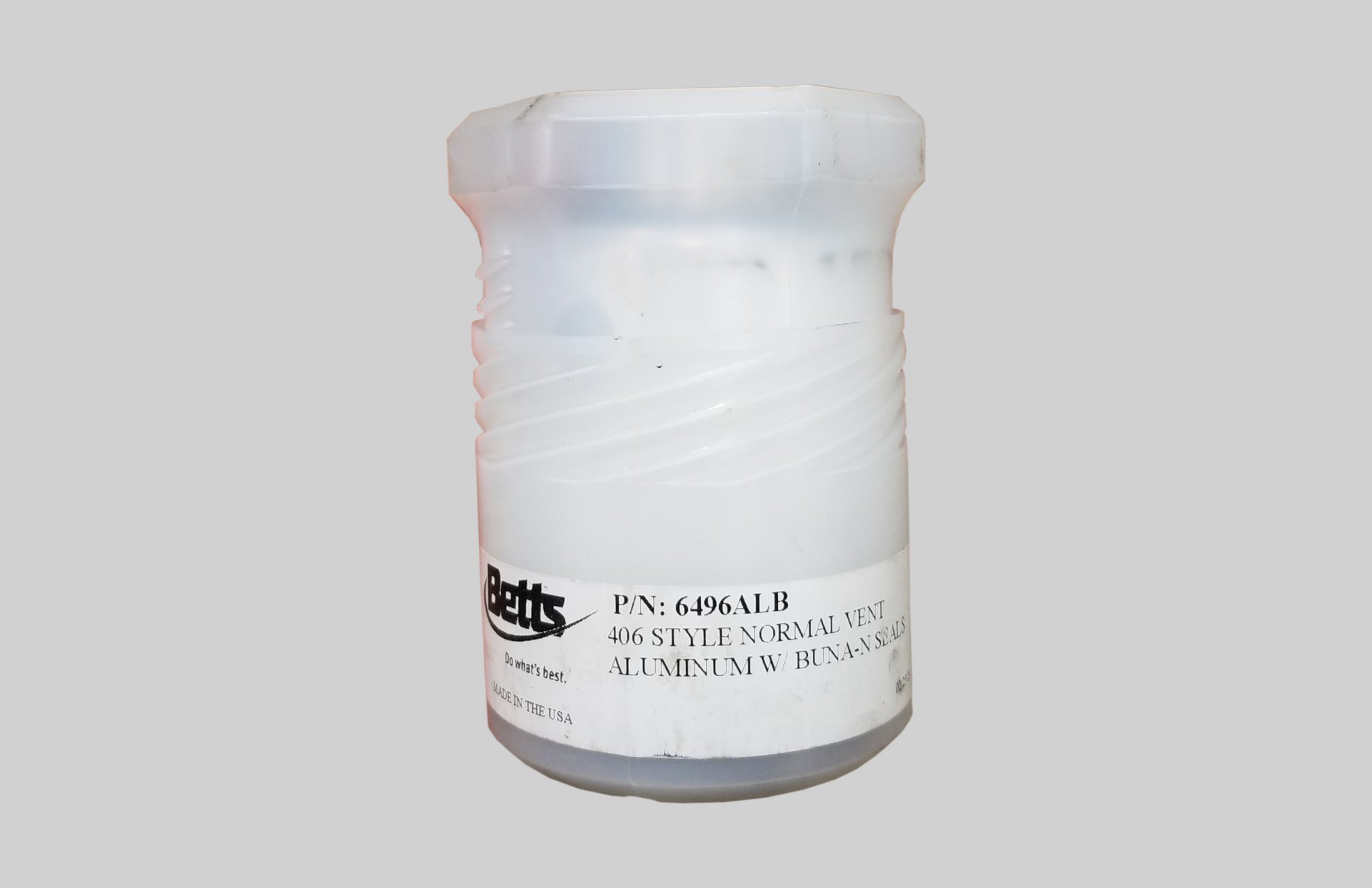

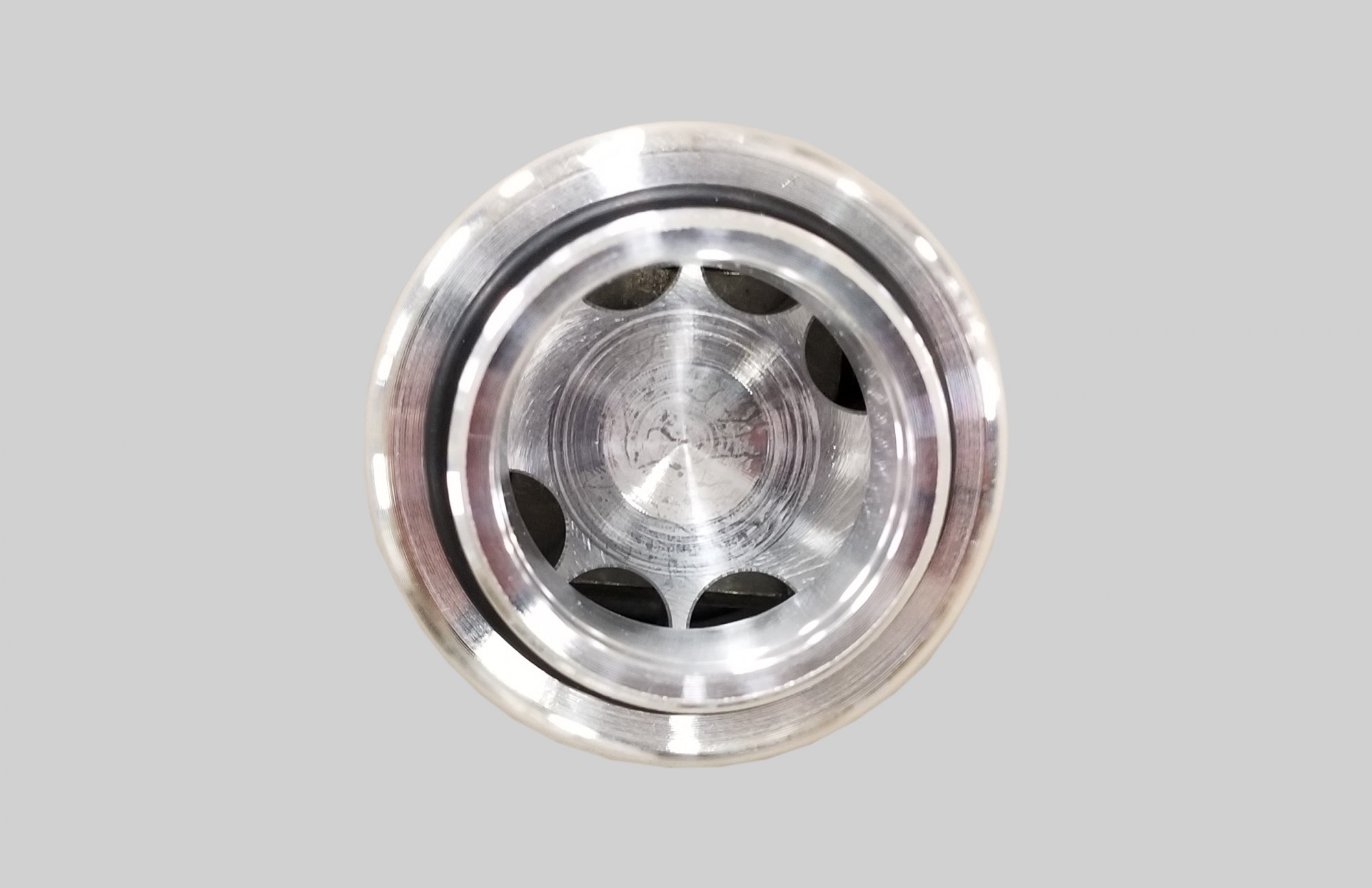

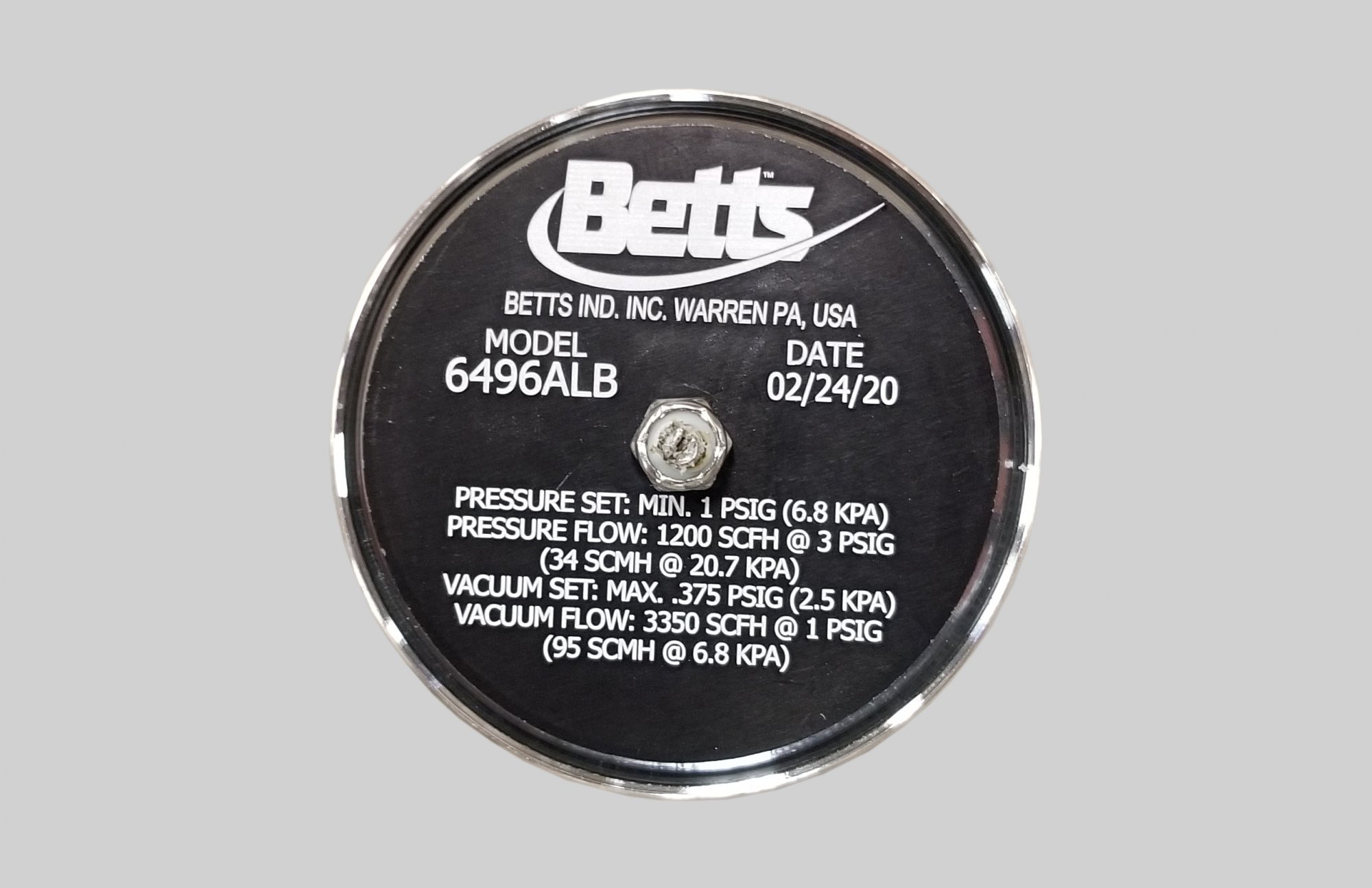

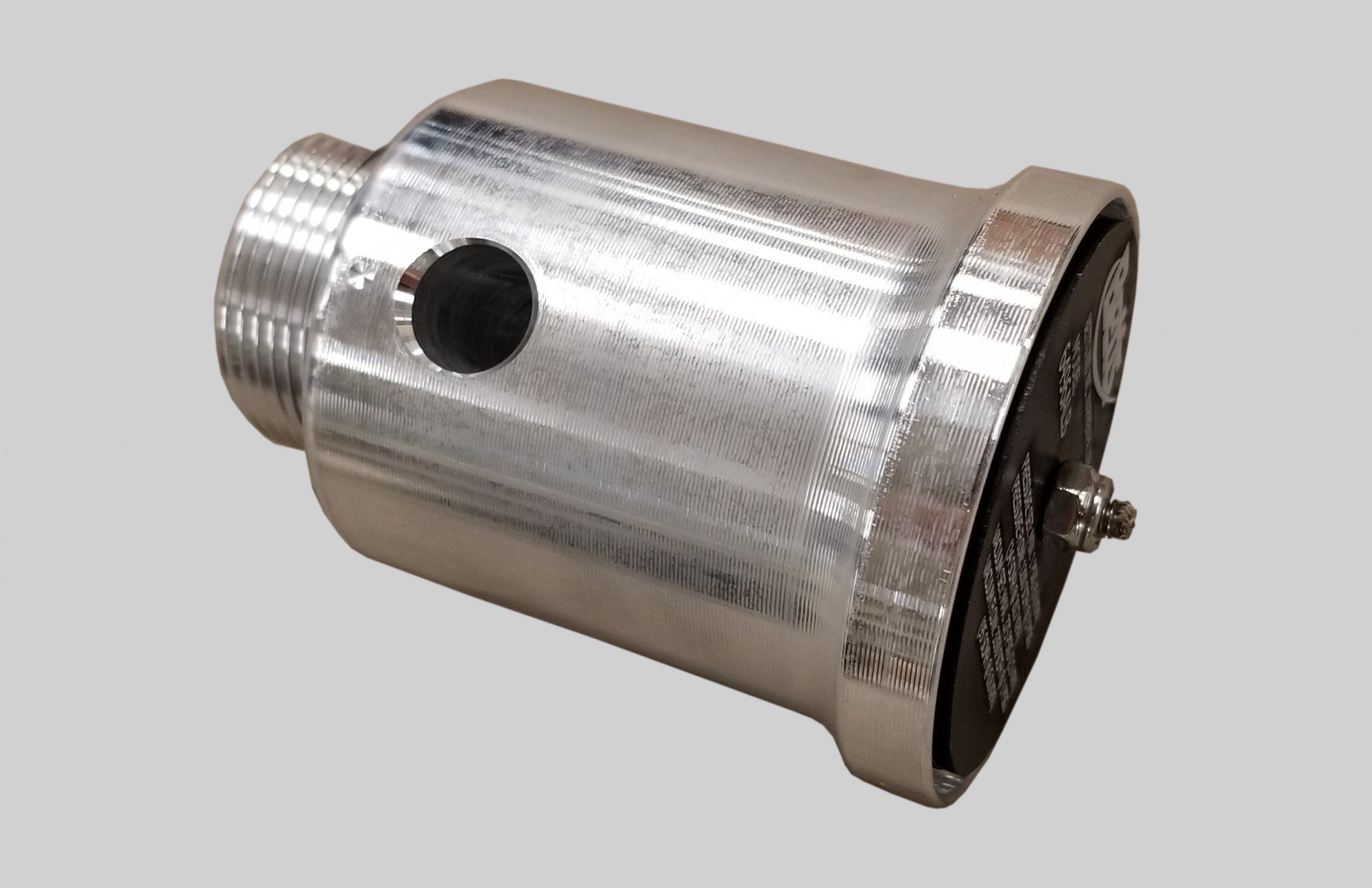

PPV VENT ALB BETTS Existing customers can log in to their account for additional savings Call for price Categories: Chemical, Chemical Tank Truck Parts, Dry Bulk, Dry Bulk Parts, Dry Bulk Tank Truck Parts, Liquid - Petroleum, Petroleum Tanks Truck Parts, Tank Truck Equipment Description Specification Description Dual Purpose Vent Roll Over Protection Compact Design Interior Mount A normal vent designed for use on MC306 & DOT406 cargo tanks. Model 6496 has a pressure setting of “no less than 1 PSIG” and a vacuum setting “no more than 6 ounces” which allows efficient recovery of vapors during closed system loading and off-loading. Unique roll over protection retains product at any attitude of rollover. Vent is flow tested and marked. Note: While normal vents provide limited vapor venting during loading/unloading, it is recommended that positive vapor valves (typically air operated) be provided when loading/unloading with the manhole closed. If positive vapor valves are not used, insure normal vent is functioning properly or open manhole cover before beginning loading/unloading. Failure to do so may result in head reversals or other tank failure. Specifications Description Part # Body Mat'l Set Pressure** Pressure Vacuum(PSIG) (PSIG) Flow Capacity Out- In- breathing breathing Dimensions A B C D (Threads) Weight (lbs). PPV DOT 406 Normal Vent 6496ALB Aluminum 1.0 0.25to to1.5 0.375 1,200 CFH 3,350 CFH@ 3 PSI @ 1 PSI .72* / 4.16* / 2.75* / 1⅝-12UN 1.0lb. Part # 6238ALV - PPV VENT WITH VITON Letter Mat'l Temp Range B Buna-N -40°F to +220°F V Viton -20°F to +400°F EP EPDM (Black) -40°F to +260°F * Add letters to part number to designate seal material. ** Proper maintenance is required to ensure effective performance of normal vent. Dust, dirt, or residue will reduce the ability of the vent to hold required set-pressure. Related products Liquid – Petroleum – Vapour Valves Drain Pocket Sliding Gate Valve – Flange x Flange Drilling Aluminum WD Valve – Standard
