Pharmaline N&X

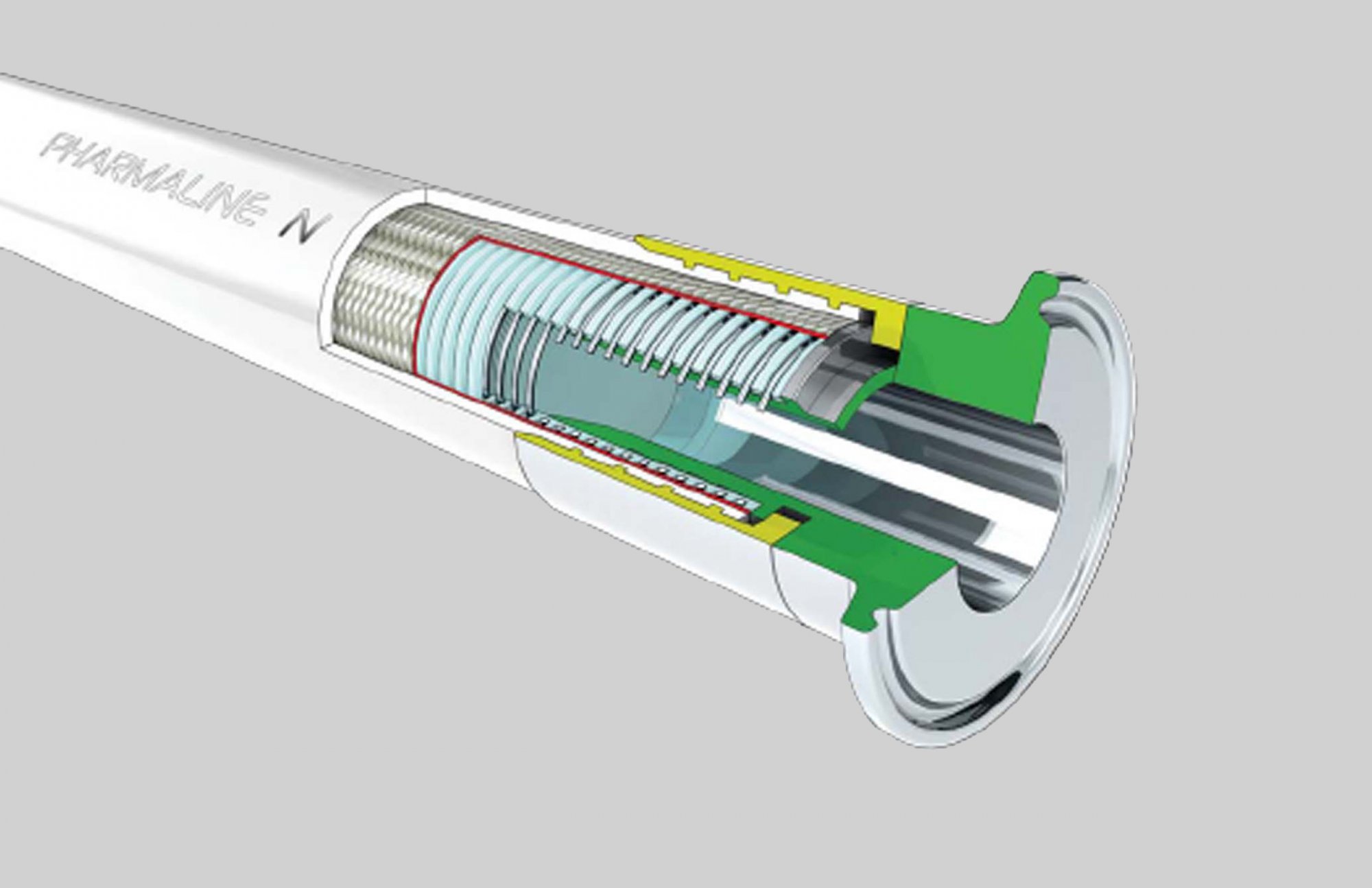

Pharmaline N&X is designed to replace conventional silicone rubber hoses. This is due to improved autoclave life cycle, chemical resistance and internal clean-ability.

PHARMALINE-N:

HOSE BORE SIZE RANGE –
1/4” (6.4mm) up to 3” (80mm)

MAXIMUM HOSE LENGTHS –
100′ (30m) up to 1-1/2”, 80′ (25m) 2”
60′ (18m) 2-1/2”, 50′ (15m) 3”

TEMPERATURE LIMITS –
From -100°F (-73°C) up to +400°F (+204°C)

WORKING PRESSURE RATINGS –
1160 PSI (80 BAR) for 1/4” to 218 PSI (15 BAR) for 3”

VACUUM LIMITATIONS –
Usable at vacuum to -0.9 BAR for all sizes up to 392°F (200°C)

END FITTING OPTIONS Non-Lined design for:
Sanitary Triclamp fittings, ANSI 150 flange fittings, DIN fittings, cam & groove fittings and more. Laser etched ferrule for ultimate traceability.


PHARMALINE-X:

HOSE BORE SIZE RANGE –
1/4” (6.4mm) up to 2” (50mm)

HOSE LENGTHS –
20m (65′) up to 1”, 6m (20′) up to 2”

TEMPERATURE LIMITS –
From -100°F (-73°C) up to +400°F (+204°C)

WORKING PRESSURE RATINGS –
109 PSI (7.5 BAR) for 1/4” to 29 PSI (2 BAR) for 2”

VACUUM LIMITATIONS –
Usable for vacuum at -0.9 BAR for all sizes up to 302°F (150°C)

END FITTING OPTIONS Non-Lined design for:
Sanitary Triclamp fittings, ANSI 150 flange fittings, DIN fittings, cam & groove fittings and more. Laser etched ferrule for ultimate traceability.

Description

Pharmaline N&X is designed to replace conventional silicone rubber hoses. This is due to improved autoclave life cycle, chemical resistance and internal clean-ability.

PHARMALINE-N:

HOSE BORE SIZE RANGE –
1/4” (6.4mm) up to 3” (80mm)

MAXIMUM HOSE LENGTHS –
100′ (30m) up to 1-1/2”, 80′ (25m) 2”
60′ (18m) 2-1/2”, 50′ (15m) 3”

TEMPERATURE LIMITS –
From -100°F (-73°C) up to +400°F (+204°C)

WORKING PRESSURE RATINGS –
1160 PSI (80 BAR) for 1/4” to 218 PSI (15 BAR) for 3”

VACUUM LIMITATIONS –
Usable at vacuum to -0.9 BAR for all sizes up to 392°F (200°C)

END FITTING OPTIONS Non-Lined design for:
Sanitary Triclamp fittings, ANSI 150 flange fittings, DIN fittings, cam & groove fittings and more. Laser etched ferrule for ultimate traceability.


PHARMALINE-X:

HOSE BORE SIZE RANGE –
1/4” (6.4mm) up to 2” (50mm)

HOSE LENGTHS –
20m (65′) up to 1”, 6m (20′) up to 2”

TEMPERATURE LIMITS –
From -100°F (-73°C) up to +400°F (+204°C)

WORKING PRESSURE RATINGS –
109 PSI (7.5 BAR) for 1/4” to 29 PSI (2 BAR) for 2”

VACUUM LIMITATIONS –
Usable for vacuum at -0.9 BAR for all sizes up to 302°F (150°C)

END FITTING OPTIONS Non-Lined design for:
Sanitary Triclamp fittings, ANSI 150 flange fittings, DIN fittings, cam & groove fittings and more. Laser etched ferrule for ultimate traceability.

Specifications

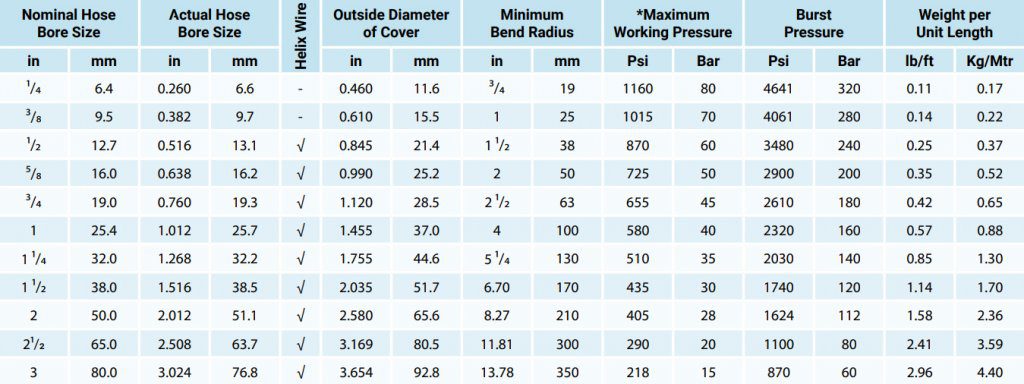

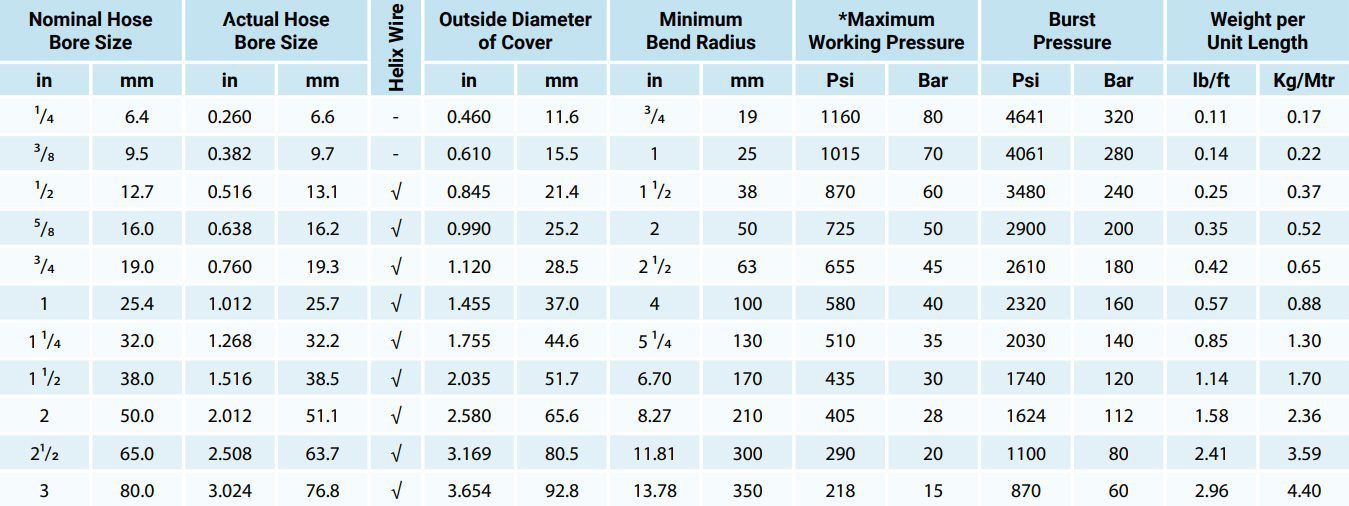

PHARMALINE-N:

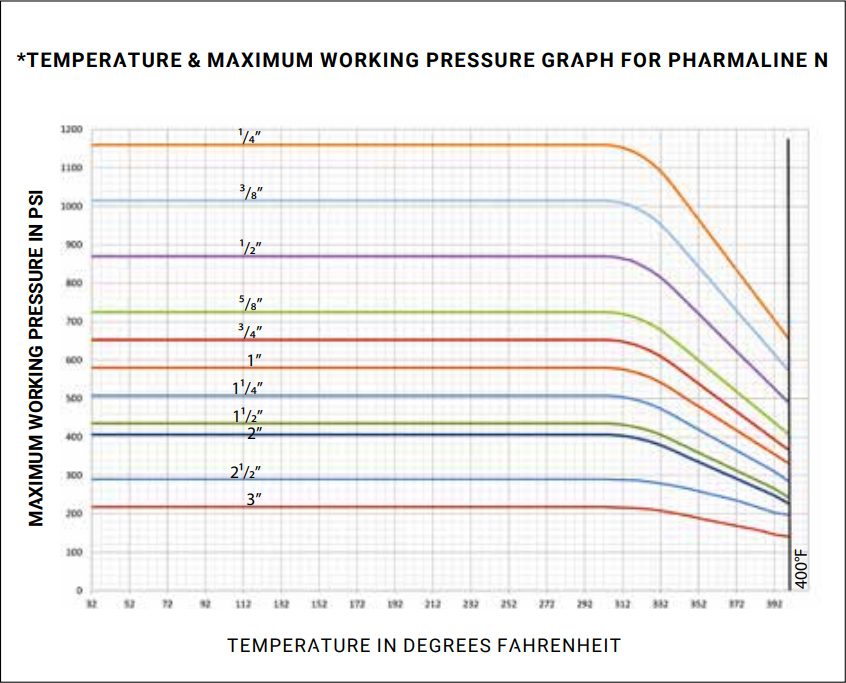

* Maximum Working Pressures vary with temperature as in graph below

*MAXIMUM WORKING PRESSURES (MWP)
The lesser of the MWP for the hose and the MWP of either of the end fittings.

TEMPERATURE LIMITATIONS
Usable from -100˚F (-73˚C) up to +400˚F (+204˚C)

VACUUM LIMITATIONS
Pharmaline N hose is usable at vacuum to -0.9bar up to 392˚F (200˚C).

ROLLING U TEST FOR FLEX LIFE
More than 15x the flex life to failure compared with other types of rubber covered, smoothbore PTFE lined hose products.

FLEXIBILITY
Much less force to bend than any other equivalent smooth bore PTFE lined hose product.

KINK RESISTANCE
Much more resistant to kinking than any other equivalent smooth bore PTFE lined hose product.

SOAKABLE
Pharmaline N hose assemblies are soakable


PHARMALINE-X:

† Maximum Working Pressures do not vary with temperature

*MAXIMUM WORKING PRESSURES (MWP)
The lesser of the MWP for the hose and the MWP of either of the end fittings.

TEMPERATURE LIMITATIONS
Usable from -100˚F (-73˚C) up to +400˚F (+204˚C)

VACUUM LIMITATIONS
Pharmaline X hose is usable at vacuum to -0.9bar up to 302˚F (150˚C).

ROLLING U TEST FOR FLEX LIFE
More than 15x the flex life to failure compared with other types of rubber covered, smoothbore PTFE lined hose products.

FLEXIBILITY
Much less force to bend than any other equivalent smooth bore PTFE lined hose product.

KINK RESISTANCE
Much more resistant to kinking than any other equivalent smooth bore PTFE lined hose product.
