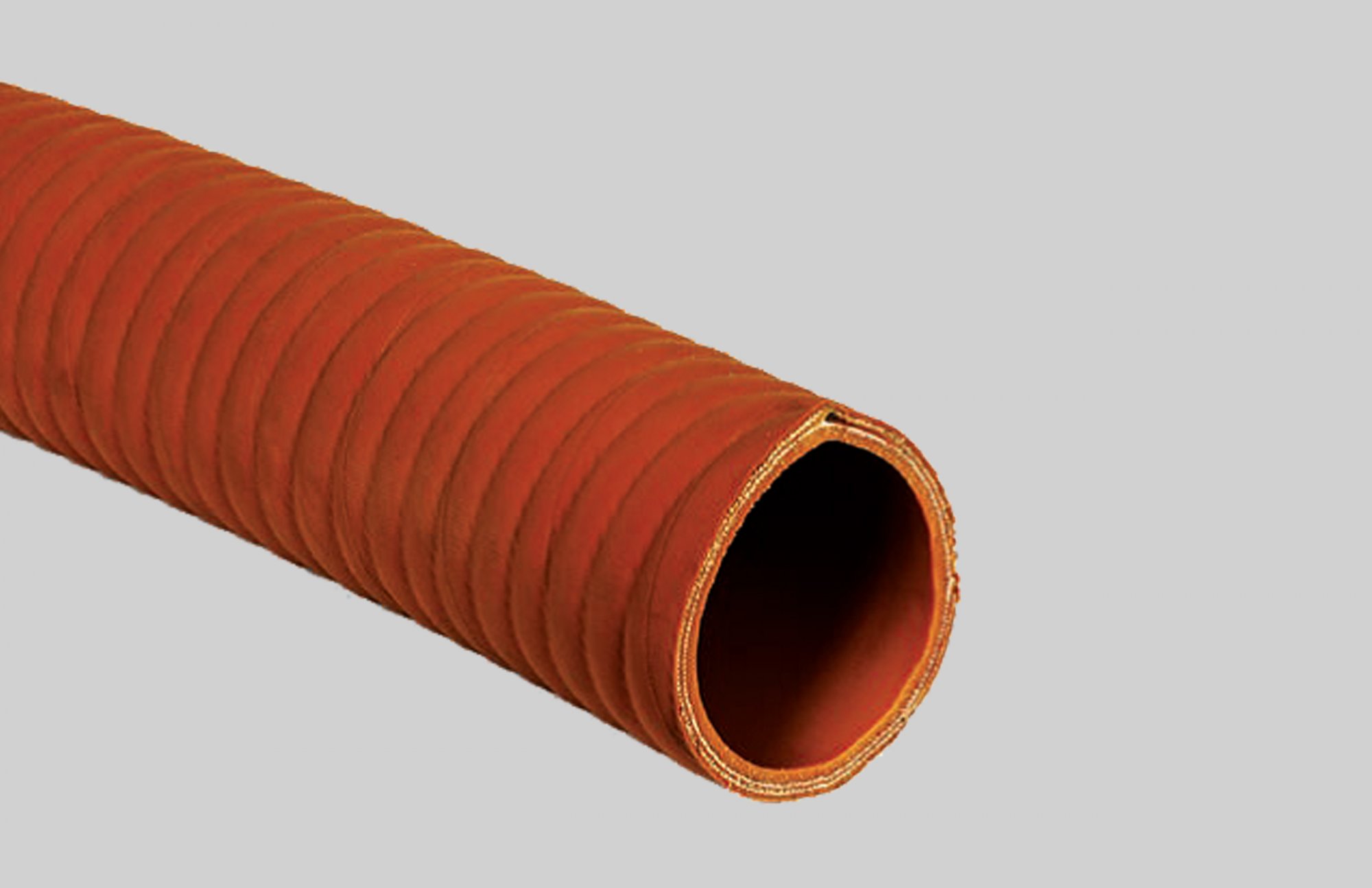

TAN BULK HOSE – HARDWALL

Applications: Suction and discharge of abrasive material such as corn, flour, sand, limestone powder, plastic pellets and sugar. FDA approved pure gum tube

Call for price
Categories: , ,

Download:   Catalog

Description

Applications:
• Suction and discharge of non-oily, wet and dry abrasive materials such as corn, flour, sand, limestone powder, plastic pellets and sugar.

Tube:
• Tan smooth abrasion resistant, 3/16” FDA approved natural rubber.

Reinforcement:
• A high tensile steel helix embedded between layers of textile cords.

Cover:
• Tan non-marking,weather resistant EPDM, corrugated for flexibility.

Temp Range:
• -25°F to +180°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length

TBM300 3 4 100 9.0 3.2 100
TBM400 4 5 100 11.0 4.4 100
TBM500 5 6 100     100

Additional information

Inner Diameter

3", 4"
