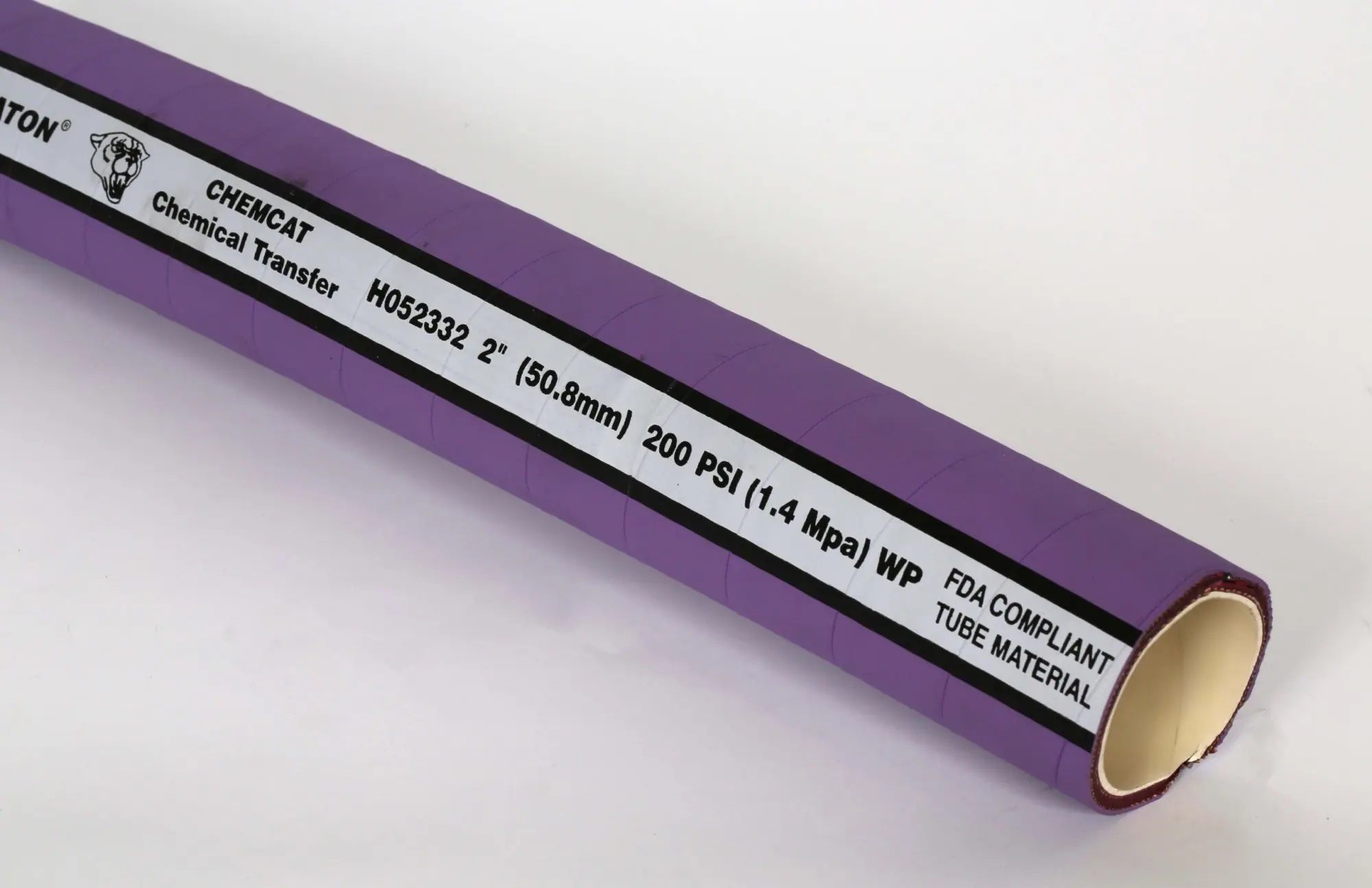

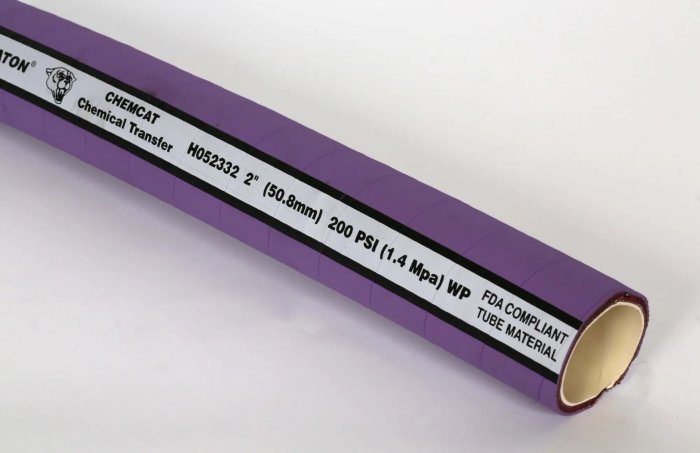

BOSTON CHEMCAT (UHMW)

Call for price

Description

Applications:
• Transfer of acids, chemicals, solvents, and petroleum
• Loading or unloading pumping, suction, or gravity flow
• Resistant to chemical, petroleum, solvent, and ozone
• Won’t contaminate or discolor fluids

Tube:
• Ultra High Molecular Weight Polyethylene UHMW

Reinforcement:
• Textile, 2 ply, or 4 ply and helical wire

Cover:
• Purple EPDM

Temp Range:
• -45°F to +160°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius ( in.)

Weight

(lbs/ft)

Standard

Length

CCAT075 3/4 1.20 200 4.0 .31 150
CCAT100 1 1.53 200 5.5 .55 150
CCAT125 1 1/4 1.88 200 6.0 .67 150
CCAT150  1 1/2 2.13 200 7.5 .89 150
CCAT200 2 2.63 200 8.0 1.16 150
CCAT250 2 1/2 3.13 200 8.0 1.42 150
CCAT300 3 3.63 200 9.0 1.68 150
CCAT400 4 4.67 200 15.0 2.26 150
CCAT600 6 7.00 200 30.0 7.21 150

Additional information

Diameter

1", 1-1/4", 1-1/2", 2", 2-1/2", 3/4", 3", 4", 6"
