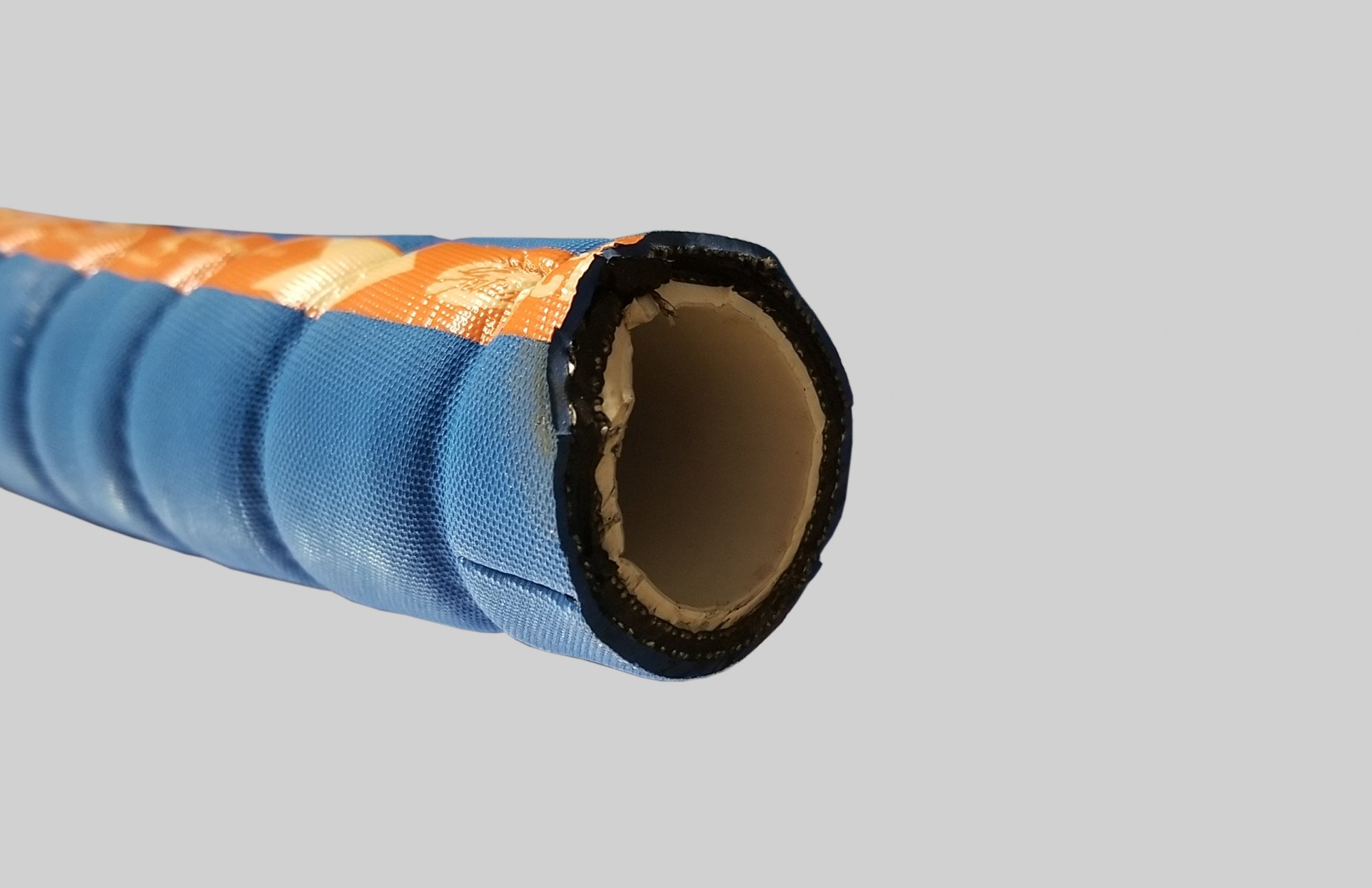

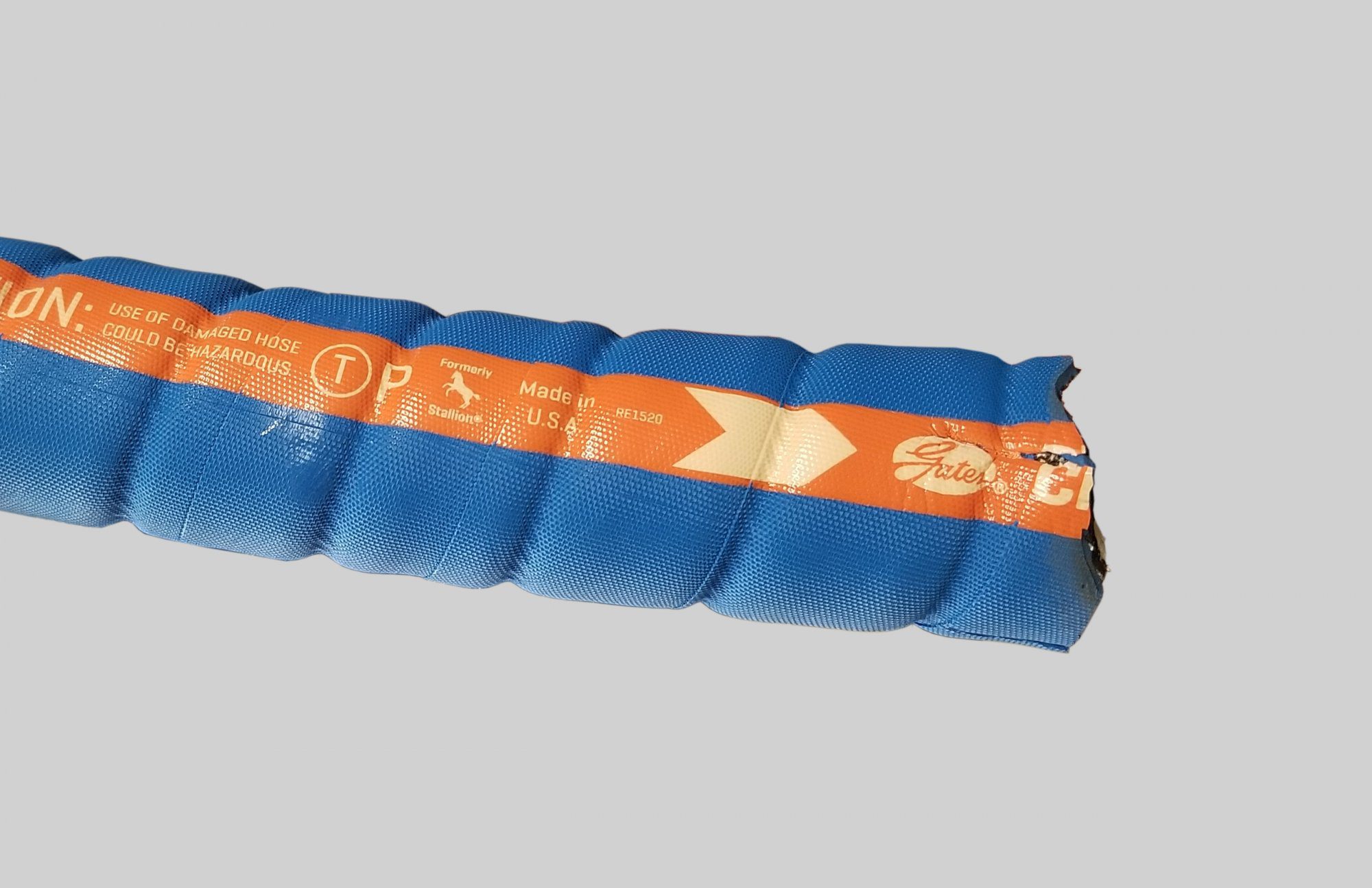

Application:
This hose handles the majority of common industrial chemicals in pressure, gravity flow and suction services.
Tube:
Type T (FEP) Teflon or Neoflon
Reinforcement:
Synthetic, high tensile textile with steel wire helix
Cover:
Type P (EPDM) Blue corrugated with red spiral stripe
Temp Range:
-40°F to +250°F
Application:
This hose handles the majority of common industrial chemicals in pressure, gravity flow and suction services.
Tube:
Type T (FEP) Teflon or Neoflon
Reinforcement:
Synthetic, high tensile textile with steel wire helix
Cover:
Type P (EPDM) Blue corrugated with red spiral stripe
Temp Range:
-40°F to +250°F
|
Part # |
I.D. (in.) | O.D. (in.) | Working PSI | Bend Radius (in.) | Weight (lbs/ft) | Standard Length |
| STAL075 | 3/4" | 1.20" | 200 | 4.0 | .31 | 150 |
| STAL100 | 1" | 1.53" | 200 | 5.5 | .55 | 150 |
| STAL125 | 1-1/4" | 1.88" | 200 | 6.0 | .67 | 150 |
| STAL150 | 1-1/2" | 2.13" | 200 | 7.5 | .89 | 150 |
| STAL200 | 2" | 2.63" | 200 | 8.0 | 1.16 | 150 |
| STAL250 | 2-1/2" | 3.13" | 200 | 8.0 | 1.42 | 150 |
| STAL300 | 3" | 3.63" | 200 | 9.0 | 1.68 | 150 |
| STAL400 | 4" | 4.67" | 150 | 15.0 | 2.26 | 150 |
| STAL600 | 6" | 7.00" | 150 | 30.0 | 7.21 | 150 |
