L-9 – High Temperature Ducting

Applications:
• Air
• Chemical fumes
• Dust
• Exhaust and ventilation
• Temperature extremes
• Vacuum and suction

Tube:
• Two-ply silicone coated fiberglass, red

Reinforcement:
• Helically wound spring steel wire

Temp Range:
• -75°F to +500°F

Categories Air Ducting, Chemical, Chemical Hose

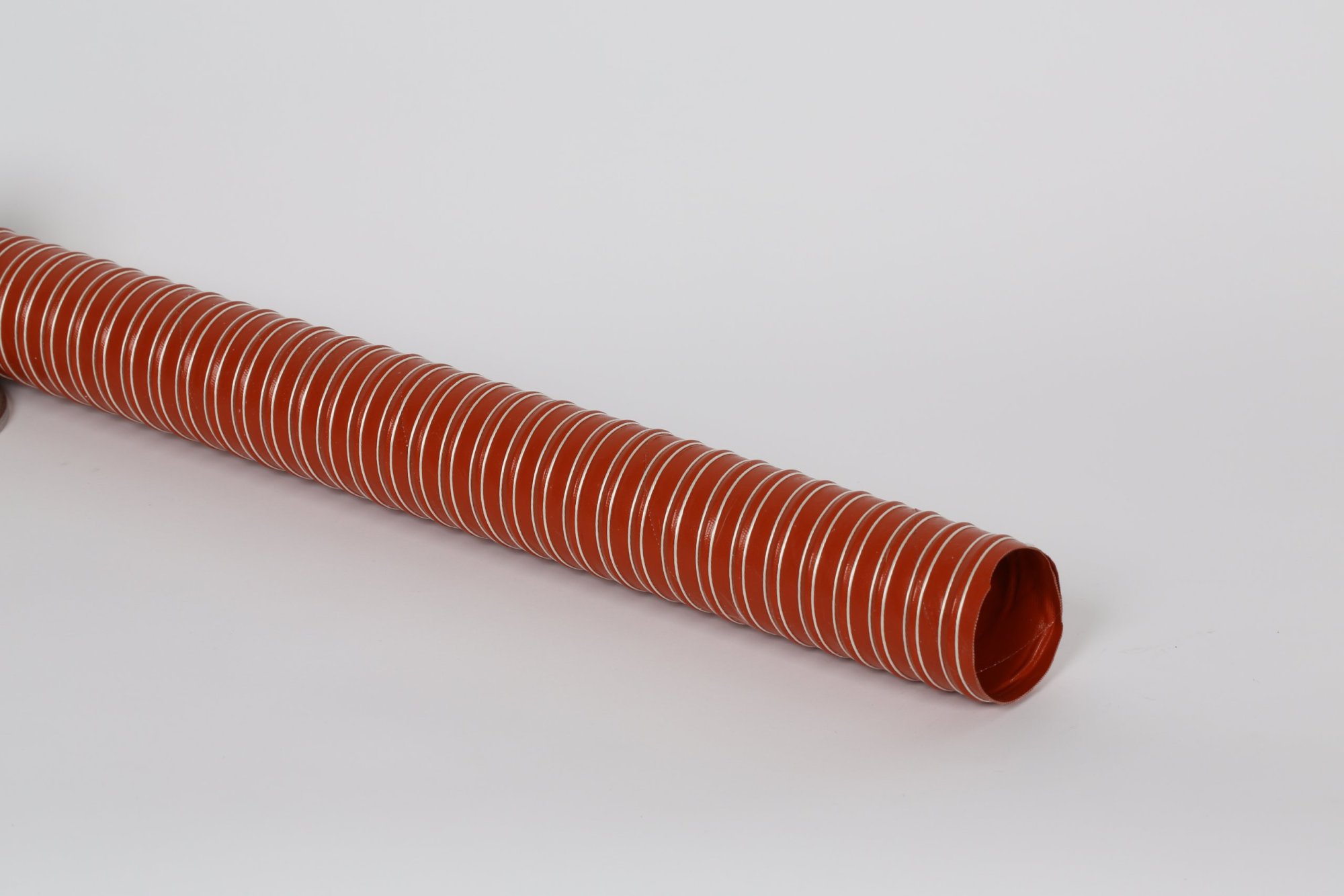

L-9 - High Temperature Ducting

L-9 - High Temperature Ducting - Image 2

Description

Applications:
• Air
• Chemical fumes
• Dust
• Exhaust and ventilation
• Temperature extremes
• Vacuum and suction

Tube:
• Two-ply silicone coated fiberglass, red

Reinforcement:
• Helically wound spring steel wire

Temp Range:
• -75°F to +500°F

Specifications

Part #	I.D. (in.)	O.D. (in.)	Working PSI	Bend Radius	Weight (lbs/ft)	Standard Length (ft)
L9D075	3/4	.87	28	.68	.11	10
L9D100	1	1.12	28	.94	.15	12
L9D125	1 1/4	1.37	26	1.22	.19	12
L9D150	1 1/2	1.62	25	1.45	.22	12
L9D175	1 3/4	1.87	23	1.68	.26	12
L9D200	2	2.12	24	1.88	.33	12
L9D225	2 1/4	2.39	21	2.18	.38	12
L9D250	2 1/2	2.65	20	2.38	.40	12
L9D300	3	3.15	19	2.90	.52	12
L9D350	3 1/2	3.70	18	3.38	.61	12
L9D400	4	4.18	16	3.87	.68	12
L9D450	4 1/2	4.67	15	4.36	.81	12
L9D500	5	5.17	14	4.88	.81	12
L9D550	5 1/2	5.67	13	5.39	1.05	12
L9D600	6	6.17	11	5.89	1.11	12
L9D650	6 1/2	6.69	11	6.38	1.0	12
L9D700	7	7.19	9	6.88	1.46	12
L9D800	8	8.19	7	7.84	1.48	12
L9D900	9	9.19	6	8.86	1.36	12
L9D1000	10	10.23	5	9.82	1.46	12
L9D1100	11	11.23	4	10.83	1.53	12
L9D1200	12	12.23	4	11.82	1.69	12

Additional information

Diameter	1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 3/4", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", 6-1/2", 7", 8", 9", 10", 11", 12"
