Teflon Hose™- Smooth Bore 5000 PSI – High Pressure

Features & Specifications of Teflon™ Hose – Smooth Bore 5000 PSI – High Pressure

Application:
High pressure applications that require strong, lightweight, long performing reliable hoses

Design:

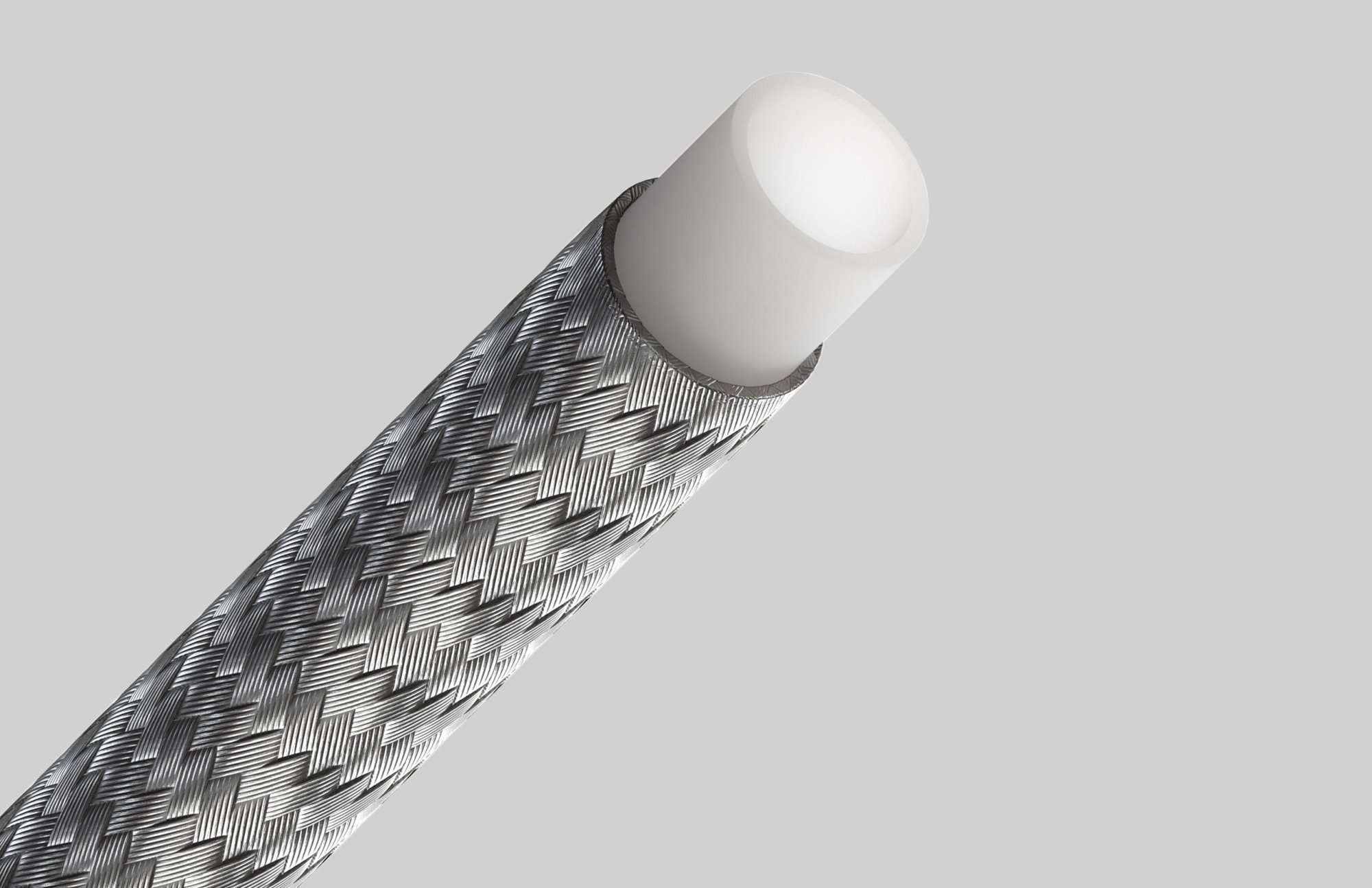

High pressure antistatic smoothbore PTFE tube with maypole and spiral wound high tensile 304 stainless steel braids

Inner Layer:
Medium wall antistatic smoothbore TFE tube

Outer Layer:
High tensile 304 maypole wound Stainless Steel bunch braid

Temperature Min:
-60°C (-76°F)

Temperature Max:
+260°C (500°F)

Material:
PTFE according to “ISO12086, Part1. PTFE-E.P.D.M 1.61.C.E.4_12”


The light weight high pressure hose with and antistatic PTFE liner, Performing well above it’s weight for hydraulic applications (T1700 has a post sintered antistatic PTFE liner for gas applications). Ideal for applications requiring strength, reliability and long term performance.

Description

Features & Specifications of Teflon™ Hose – Smooth Bore 5000 PSI – High Pressure

Application:
High pressure applications that require strong, lightweight, long performing reliable hoses

Design:
High pressure antistatic smoothbore PTFE tube with maypole and spiral wound high tensile 304 stainless steel braids

Inner Layer:
Medium wall antistatic smoothbore TFE tube

Outer Layer:
High tensile 304 maypole wound Stainless Steel bunch braid

Temperature Min:
-60°C (-76°F)

Temperature Max:
+260°C (500°F)

Material:
PTFE according to “ISO12086, Part1. PTFE-E.P.D.M 1.61.C.E.4_12”


The light weight high pressure hose with and antistatic PTFE liner, Performing well above it’s weight for hydraulic applications (T1700 has a post sintered antistatic PTFE liner for gas applications). Ideal for applications requiring strength, reliability and long term performance.

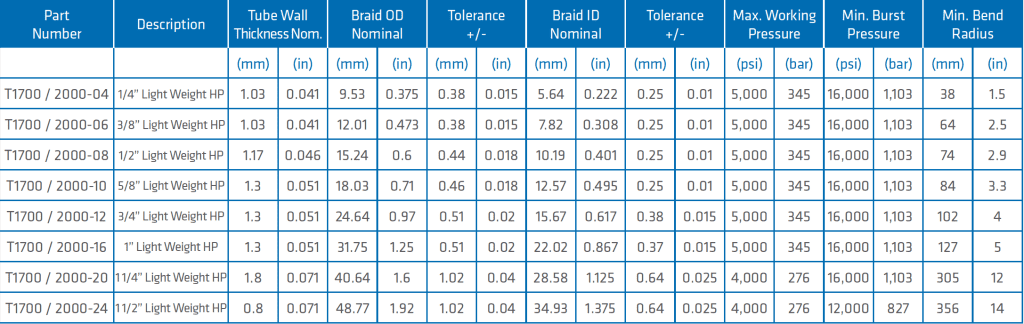

Specifications

T1700/T2000 Light Weight High Pressure Range
